Pico 8 Adventures

Introduction

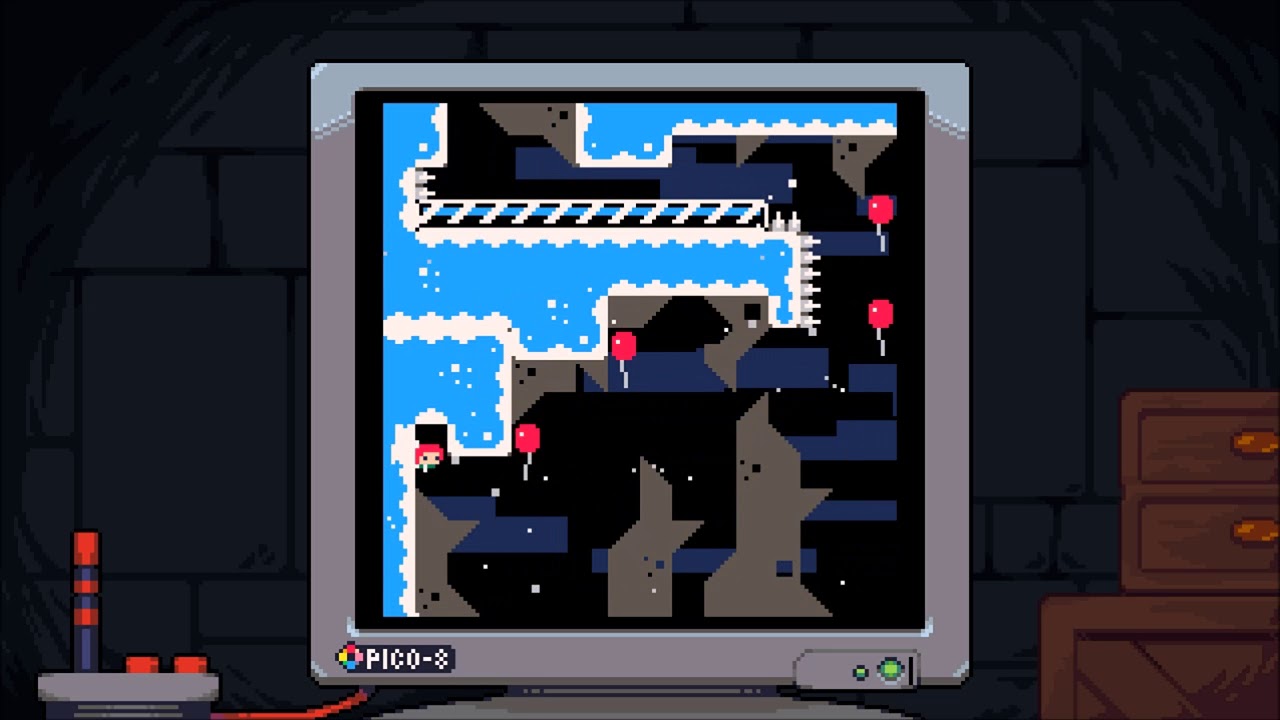

While on an failed attempt to 100% Celeste, I encountered a PICO-8 version of Celeste, inside Celeste itself. I had heard of it before, but never fully ventured in, and I got a bit intruiged by it.

After digging into PICO-8 a bit more, I could not resist grabbing a copy of my own to experiment with it. Shortly after exploring around the editor, I noticed some things. There were only 16 colors, you had a 8192 character limit on your code and you are limited to only 8x8 pixel art (which, in hindsight should have been obvious from the name). Oh, and no shaders, which is a bummer because they really help enhance the looks of my abysmal pixel art. These are some really tight limitations and things I never even noticed while playing Celeste's PICO-8 version. This really seemed kind of insane to me, because I had been working on my little top down dungeon crawler and it is already over 16k lines of code, let alone 8192 characters.

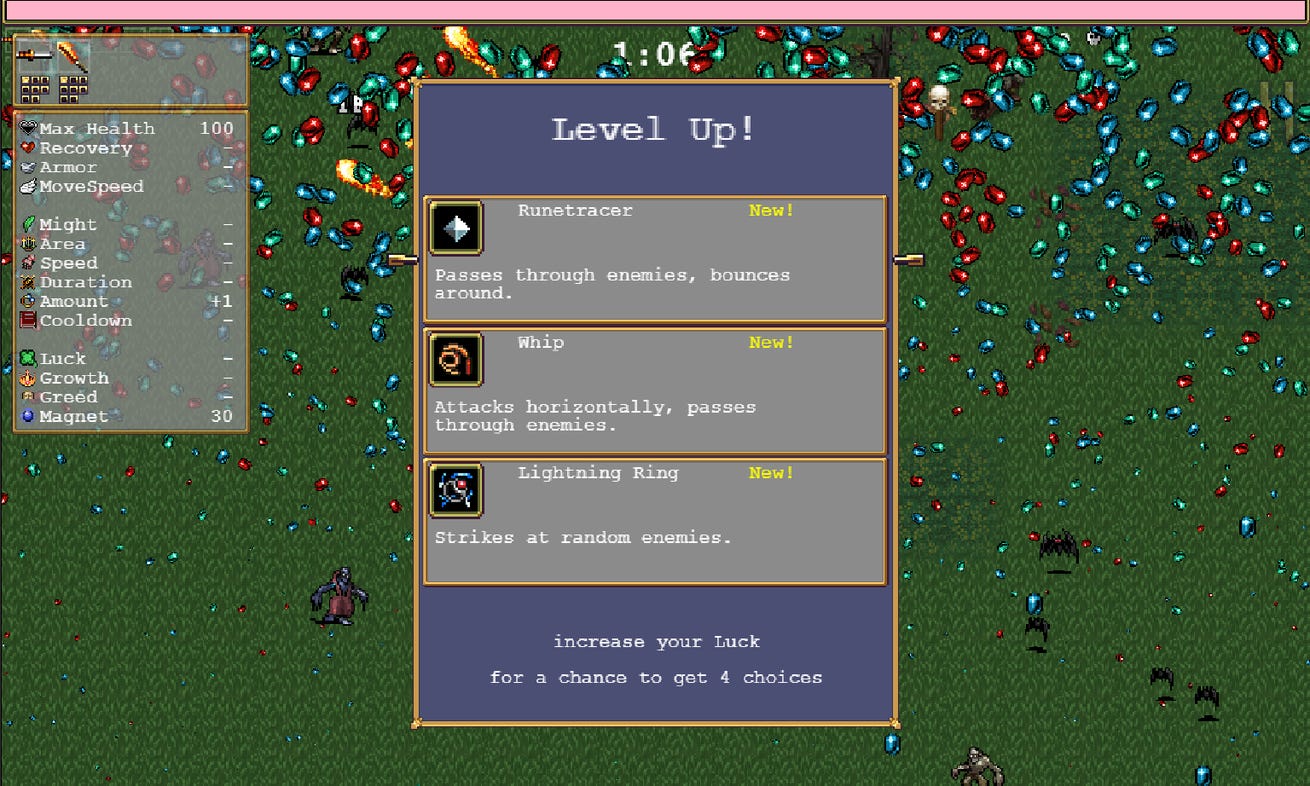

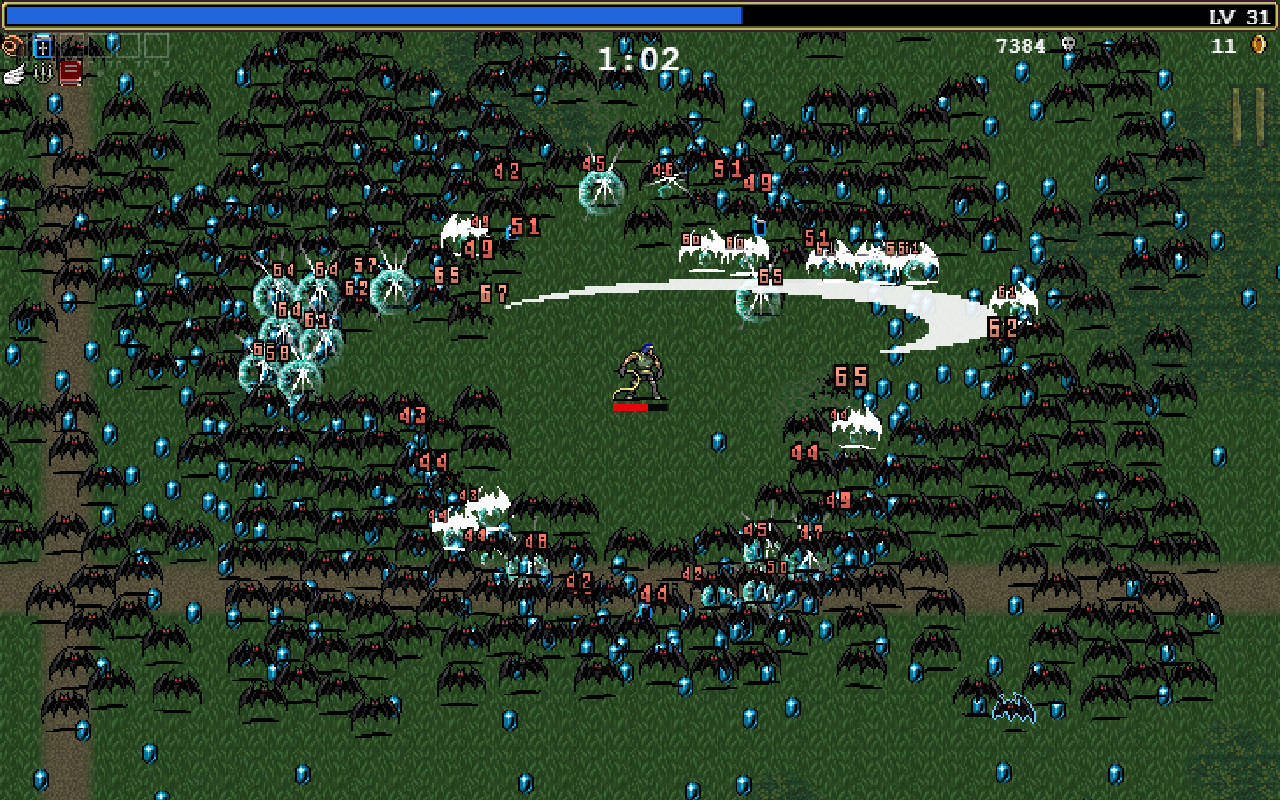

And so, I set out on a small goal for myself, squeezing the most game juice (and a game) out of these limitations. The game I have in mind is kinda like space invaders, kinda like a Undertale-style bullet hell, kinda like Vampire Survivors upgrade system. We will see down the line how much I strayed from the original goal, but this is a very rough progression/game idea I have.

The Player and The Sky(box)

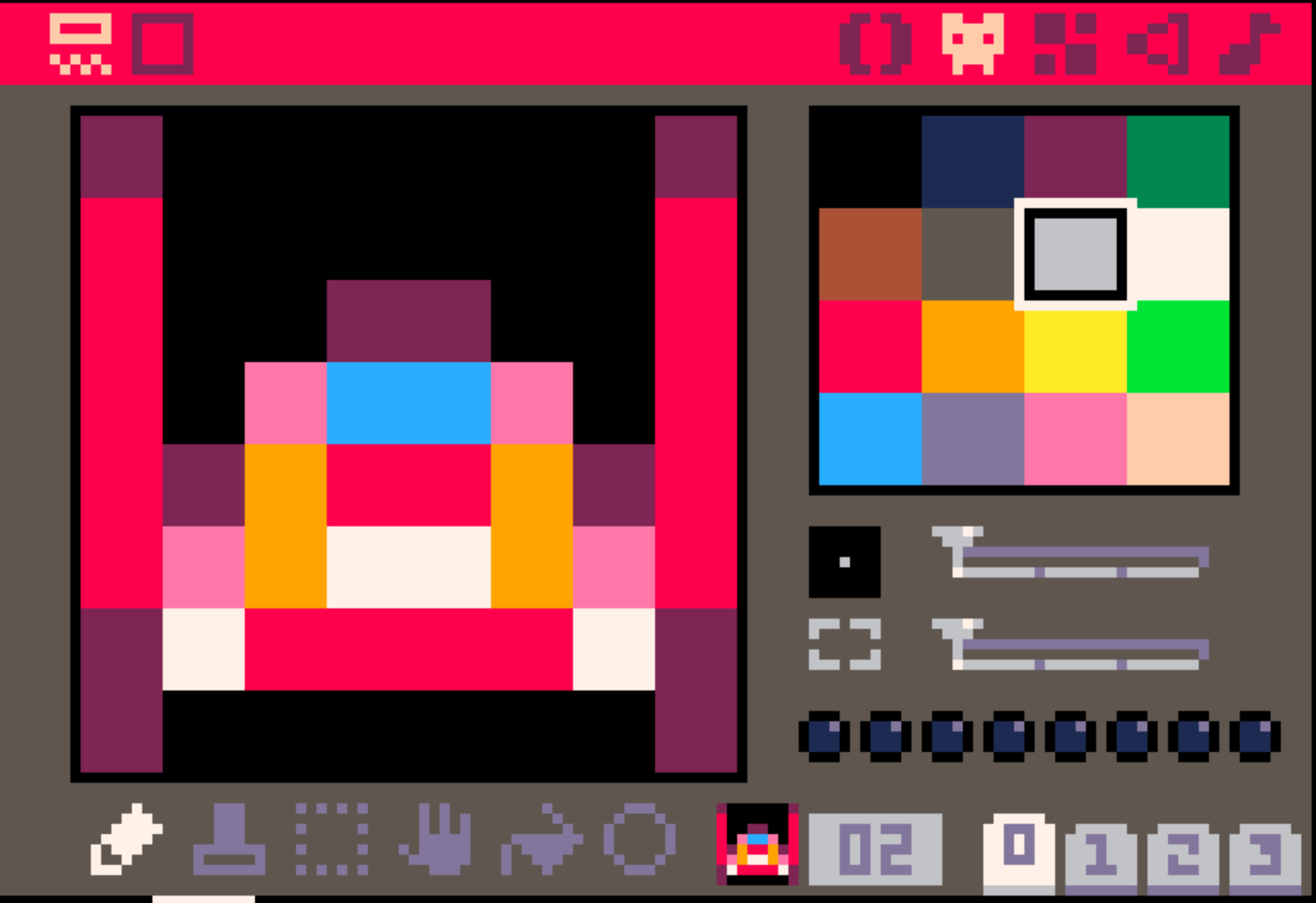

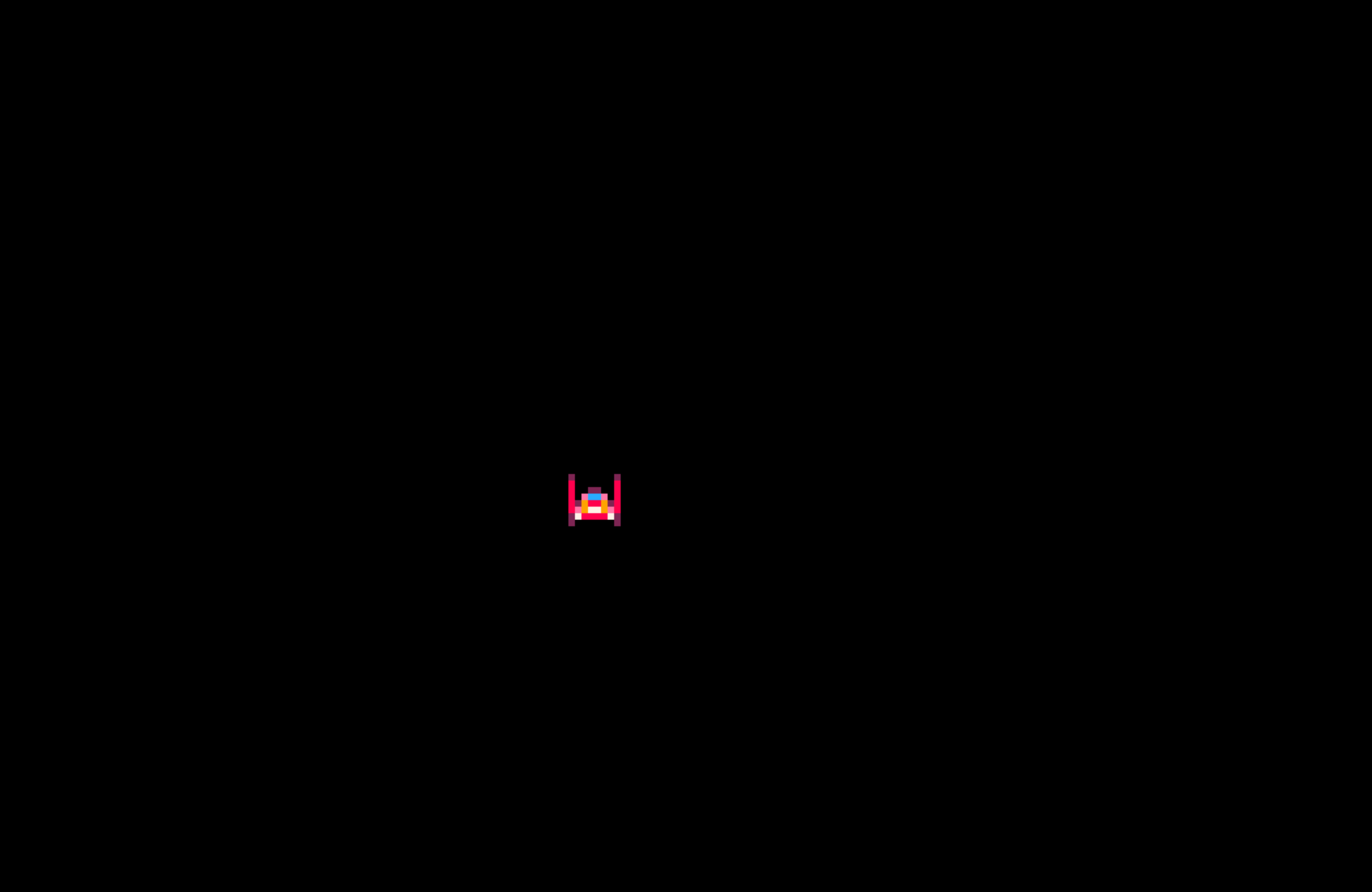

So above was the sprite I was able to draw with the 64 pixels I was given. This, will be my ship. PICO-8 has really a easy inbuilt function called SPR() to draw a sprite. Drawing and creating a basic character controller, was barely a minute of work.

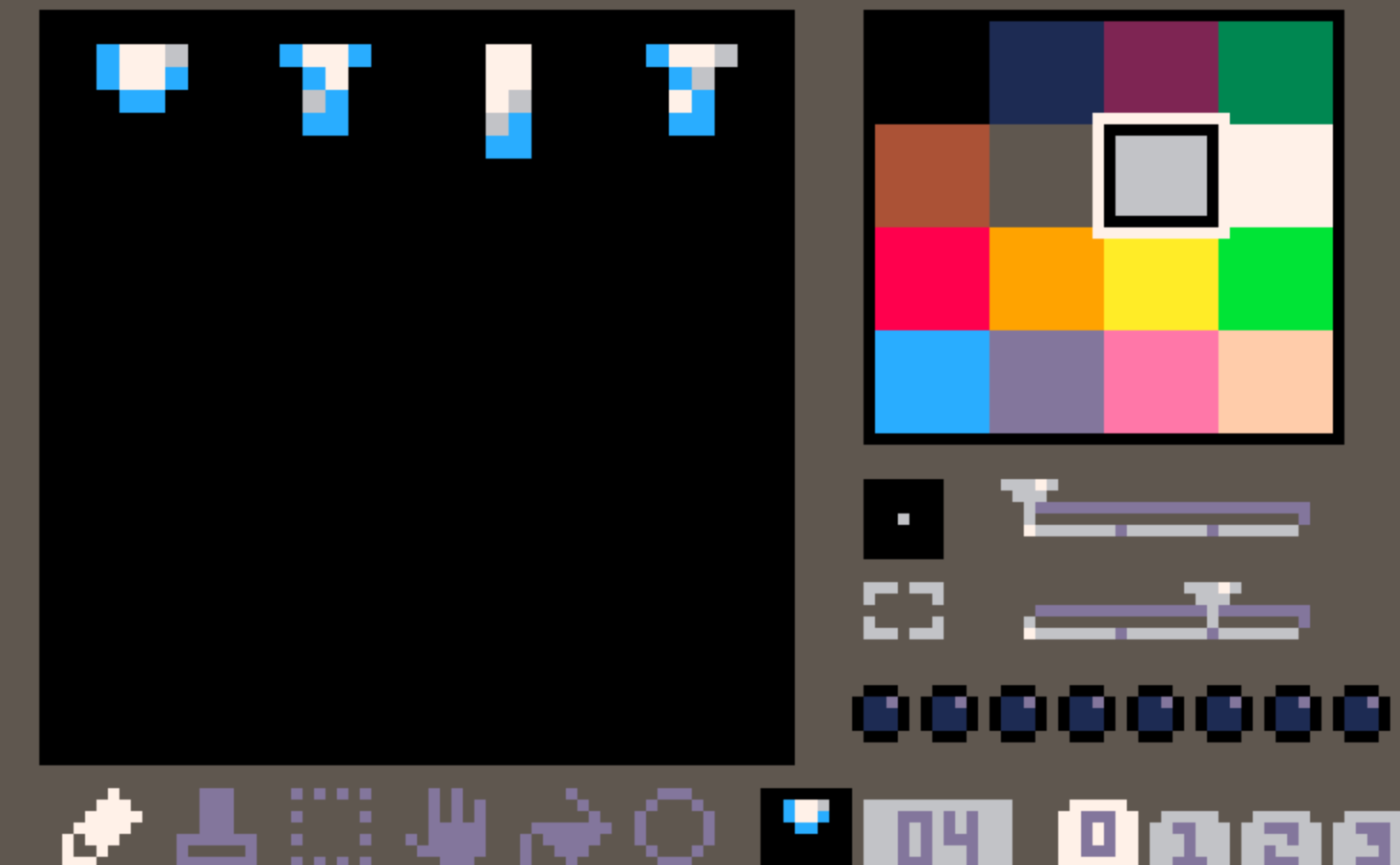

But, it looks sad and lonely and it feels boring to move around. So the first fix was to draw the spaceship's exhaust below it. Using my very primitive art skills, I was able to whip out this spritesheet for the exhaust.

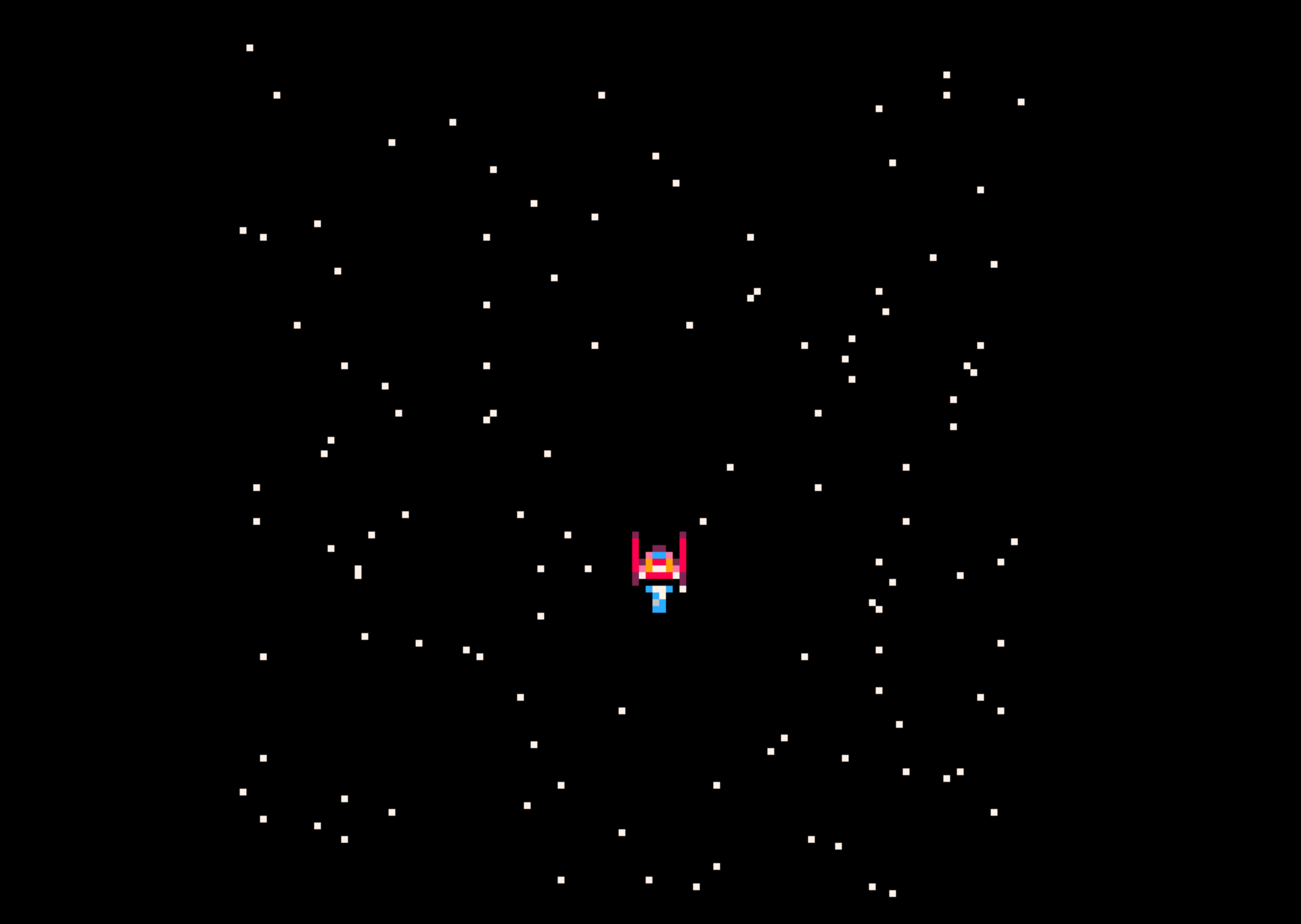

Let us also sprinkle some "life" into the space where our ship is flying around. The easiest way is to add some stars. We run a loop 100 times, we create a new star with a random x and y and we draw a 1x1 rectangle.

We are actually not "drawing rectangles" here, PICO-8 gives us this built-in called PXSET which can be used to set the color of a specific pixel. It is not possilbe to draw 1x1 rectangles using PICO-8's rectangle function

Now to add life to these stars, we can apply some techniques:

• First, we can infinitely pan them downwards, which will give the illusion that WE are going up.
• Next we can apply a parallax effect, and make it so that each star has a random rate of falling down.
• On top of that, we can give the slower stars a different dimmer color, to give the illusion of depth (stars far away will move down slower).

1for i = 1, #stars do
2    local scol = 7
3    if stars[i].speed < 0.5 then scol = 5 -- too far, darker grey
4    elseif stars[i].speed < 1 then scol = 13 --far, grey
5    elseif stars[i].speed > 1.5 then scol = 7 -- near, white
6    end
7    pset(stars[i].x, stars[i].y, scol)
8end

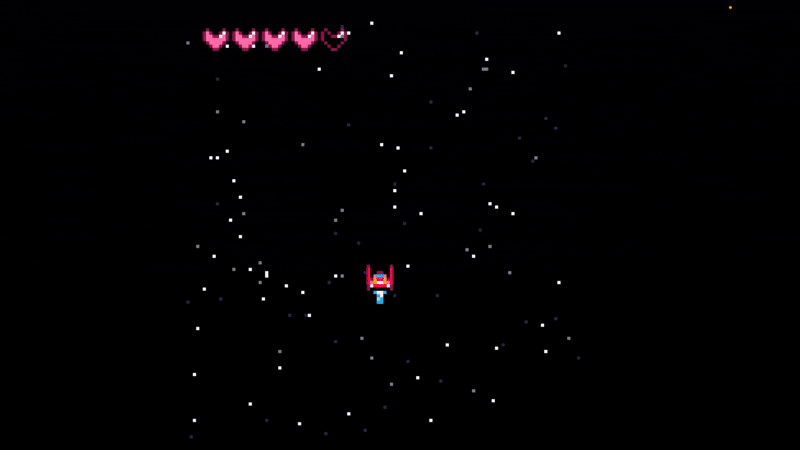

• The last trick is that, using the principles of relative velocity, I can slow down or speed up the stars when I move up/down. Similarly I can also give them a horizontal displacement on moving left/right. The final code for updating the positions of stars comes down to

1for i = 1, #stars do
2    stars[i].y = (stars[i].y + stars[i].speed + 0.2 - vely * 0.1) % 128
3    stars[i].x = (stars[i].x - velx * (0.1 + stars[i].speed * 0.1) + 128) % 128
4end

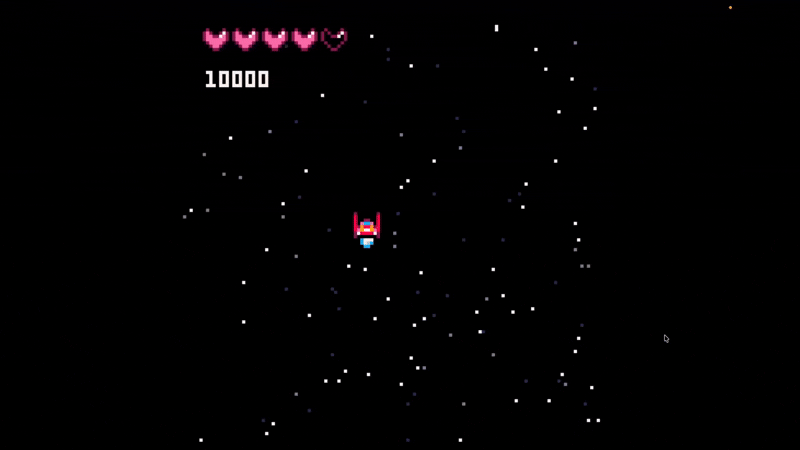

And with just these simple tricks, the movement feels far more better.

Satisfying Pew Pew

I plan to have two types of projectiles that can spawn from the player. One will be normal regular projectiles that hits one enemy. Other would be a special big fireball that does damage over an area. So the code to shoot a fireball starts off really simple.

1bulls = {}
2if btn(5) then
3    -- add item to bulls table
4	add(bulls, {
5		x = posx, -- posx: player x position
6		y = posy - 3 -- posy: player y position
7	})
8end

If we now try to shoot, it will shoot 30 bullets per frame, which is not ideal at all. So we can add a small timer to regulate the frequency at which these guns shoot.

01-- GLOBALS
02bulls = {}
03timer = 5
04
05-- GAME UPDATE LOOP
06if btn(5) then
07    if timer <= 0 then
08    -- add item to bulls table
09	add(bulls, {
10		x = posx, -- posx: player x position
11		y = posy - 3 -- posy: player y position
12	})
13    timer = 5
14    end
15end
16timer -= 1

To actually move the bullets, in the update function, I just move them up, until they are out of screen, and use a built-in DELI to delete that bullet from the bullets table.

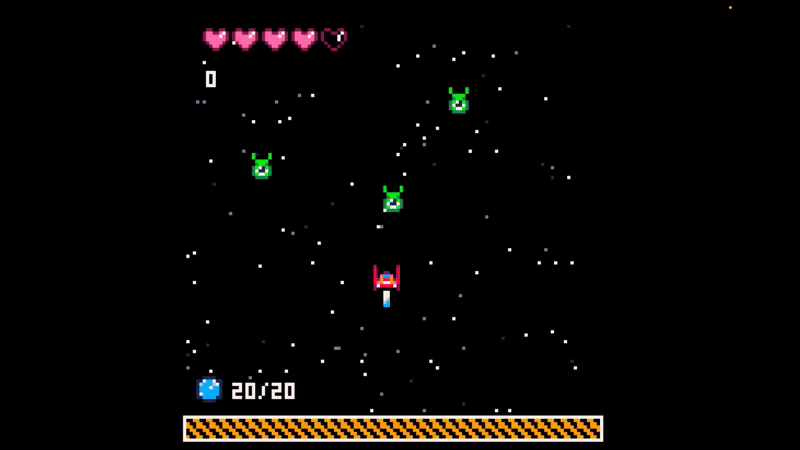

We have a simple shooter, but it still feels.... stale? A little visual indicator I did was to draw a muzzle flash for every shot. So the way the flash works is that it is a white circle that appears instanteously upon shooting and frame by frame we make it smaller.

01-- GLOBALS
02muzzle = 0
03
04-- GAME PLAY LOOP
05if btn(5) then
06    if timer <= 0 then
07        --- ...
08        muzzle = 5
09    end
10end
11
12if muzzle > 0 then
13    muzzle = muzzle - 1
14end

Then using this, we just draw a white circle of radius muzzle just a little above our spaceship.

Because I want this game to be in like a roguelike fashion, I need to nerf the player in the beginning so he can buy upgrades later. One of the ways I did that was to add a cooldown to the special attack. Now cooldown timer, works like any other timer I have showcased till now. It is also important to give some sort of visual indicator.

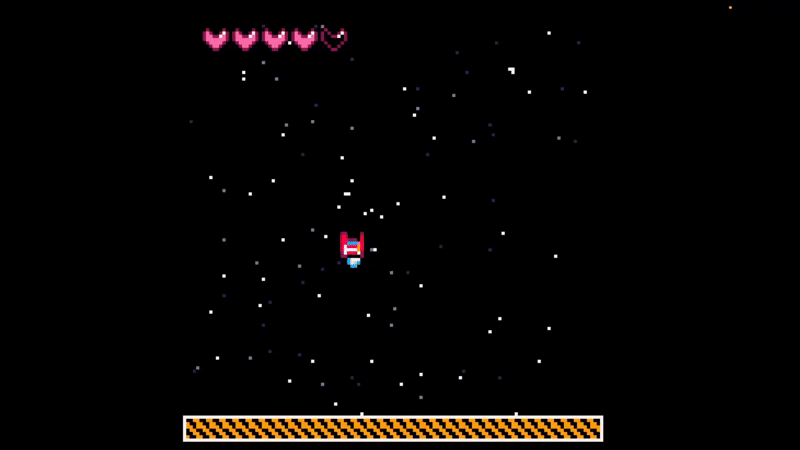

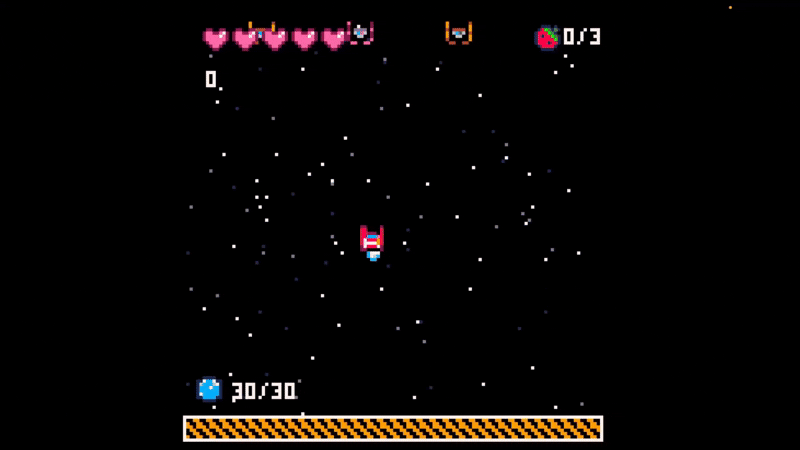

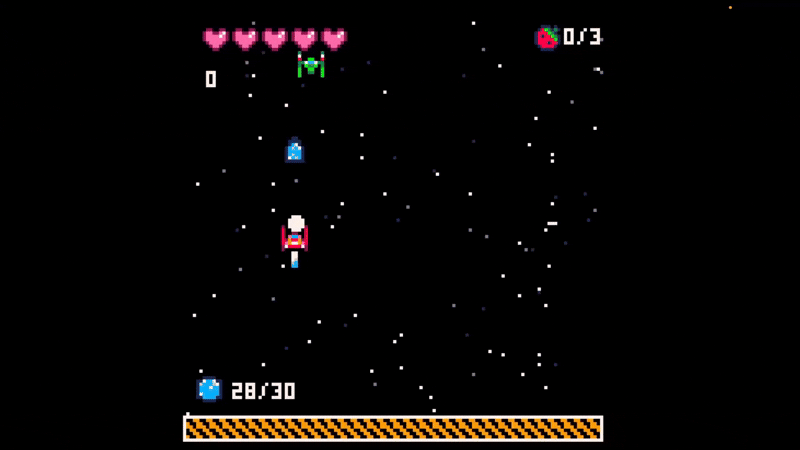

My visual indicator was a huge progress bar spanning across the screen with a white border. I also made the white border flash red and white for a short duration when cooldown ends. To make the progress bar more interesting I tried to replicate a diagonal striped pattern using

1fillp(0b1100011000110001)

FILLP takes in a bitfield representing the fill pattern to use. It is a single number that represents a 4x4 pixel pattern. And after these changes, this is what my cooldown indicator looked like.

I wanted to nerf the primary attack in some way as well. Using cooldowns again felt kind of cheap, so I made it so that you can spam the primary attack but you will have to reload after certain amount of bullets.

This was really easy to code as all I did was check if the magazine is empty and if it is, over the reload time, disable shooting and keeping add bullets to the max capacity of the magazine.

The visual indicator for this was literally

1print(tostr(mag)..'/'..tostr(maxmag), 7)

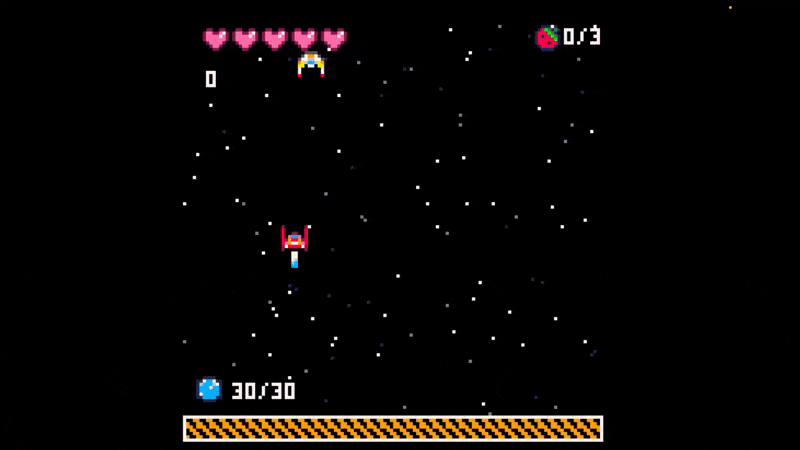

But it looked really bad, so I made a couple of changes to it. First, as a visual indicator that the magazine is about to be empty, I change the text to yellow if magazine is less than 30% of capacity.

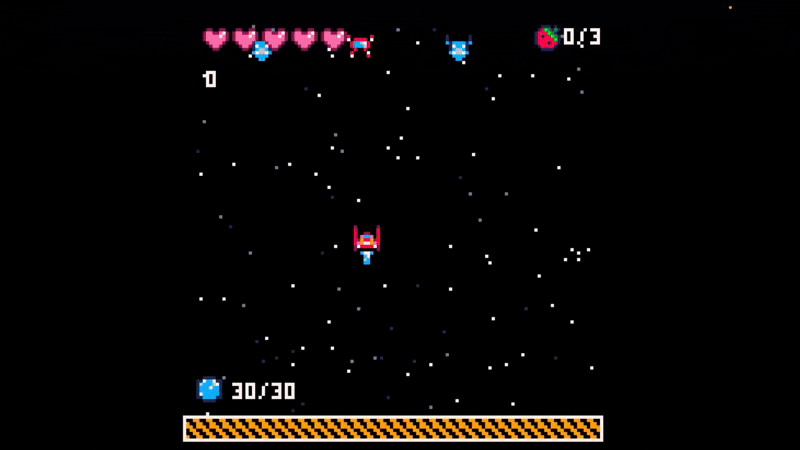

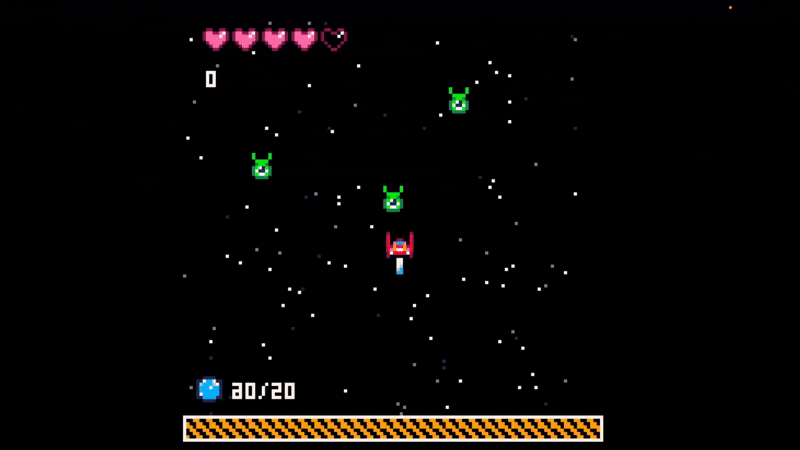

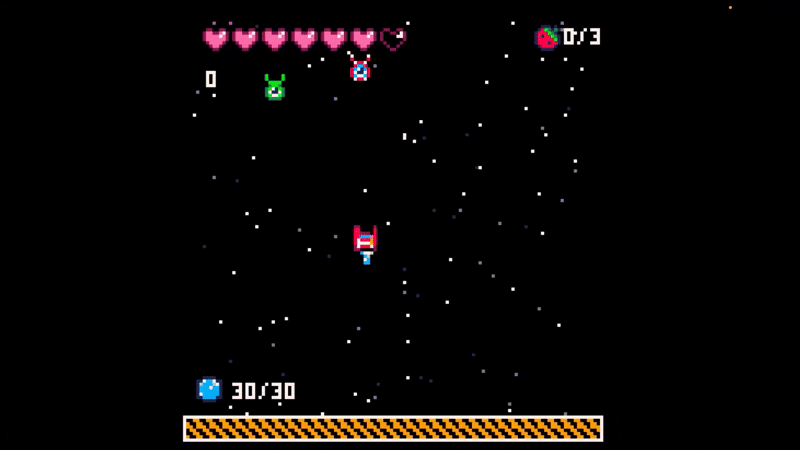

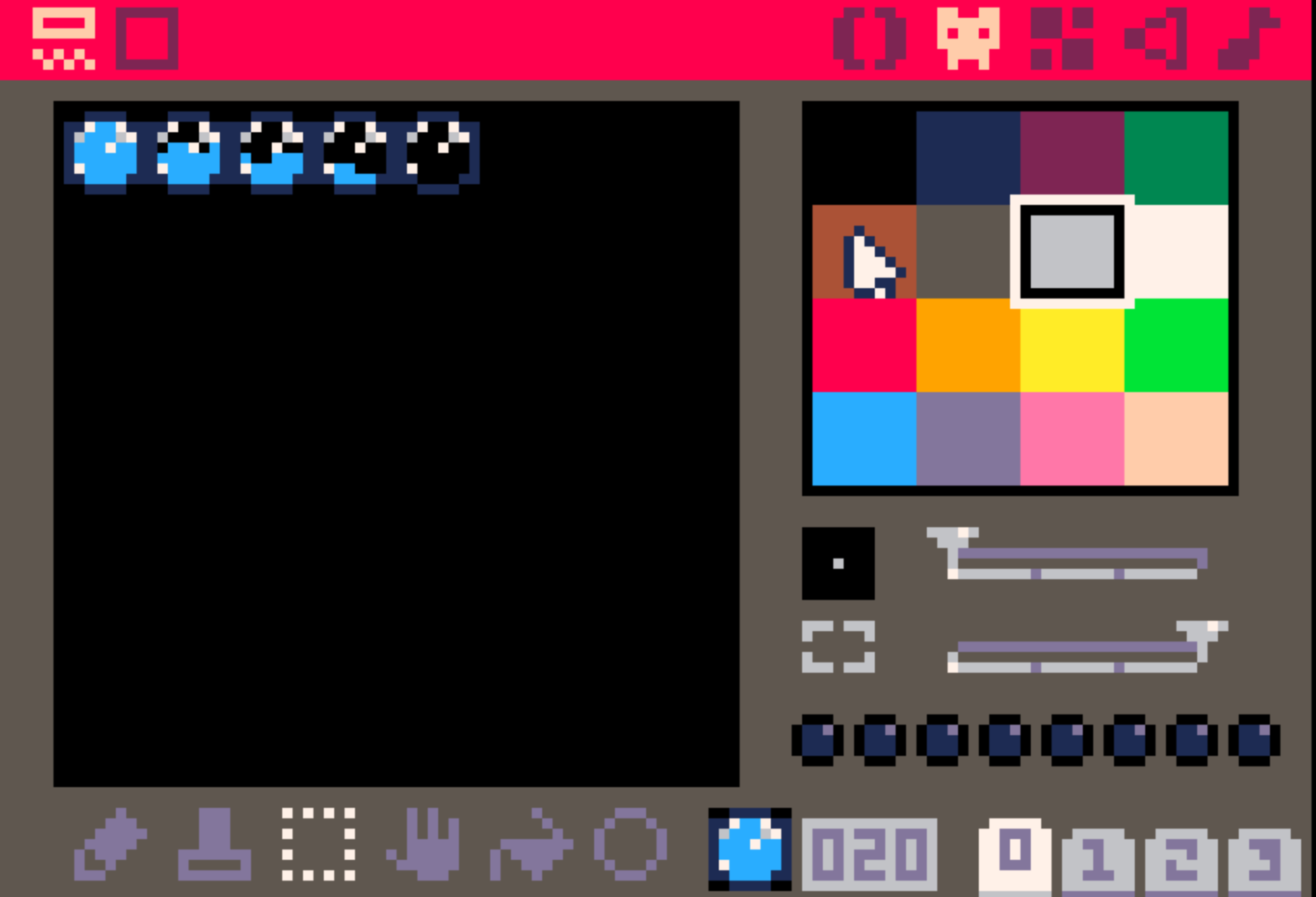

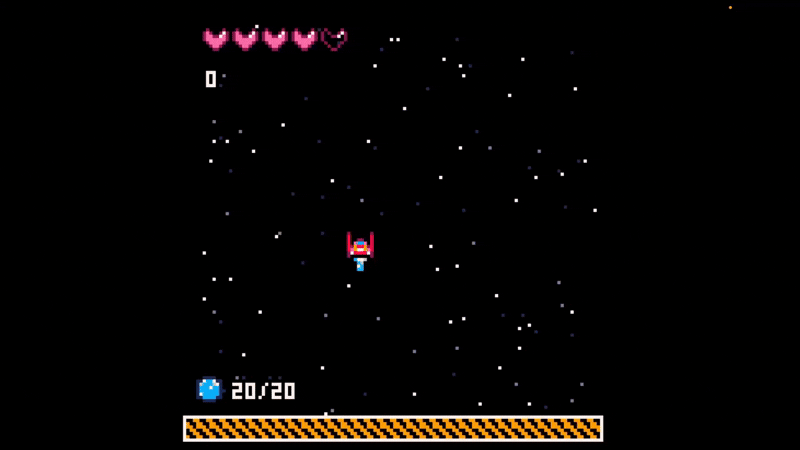

Next, I made these little indicators of how much bullets/mana is left according to capacity of magazine and cycle through it when shooting or reloading. Combining all of these, we end up with a pretty satisfying result with which we can conclude the core mechanics of your shooting system.
